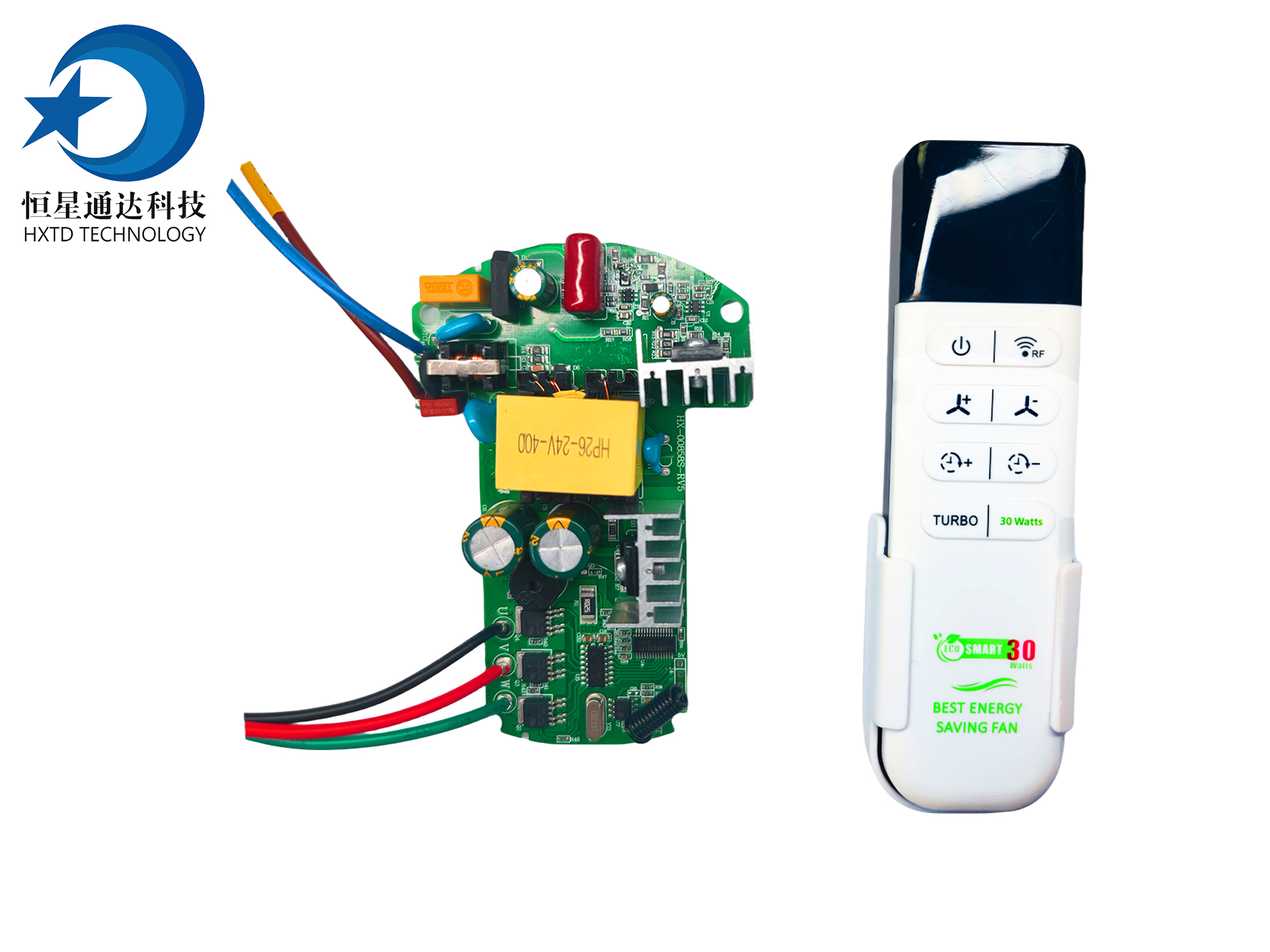

P/N:HXTD00858-TShape
PCBA diameter(max): hxtd30fs: 65*56mm(+1mm)
Hole diameter: 28+1mm
hxtd36fs: Ø76mm(+1mm)
Hole diameter: 22+1mm
Input Voltage: DC9 ~ 26V
POWER: 36~48Watt
RPM: 0-360rpm
IR Control: 5 Grade controll
by IR Remote controller
Buzzer: yes
Driving mode: No sense FOC sine-wave
Assembly method: External
Features: over temperature protection,
over current protection,
over voltage protection;
out of phase protection,
soft start
Speed control: PWM or VSP
Super silent
Heat dissipation structure design
